Buy Startech Pci2s1p 2s1p Pci Serial Parallel Combo Card

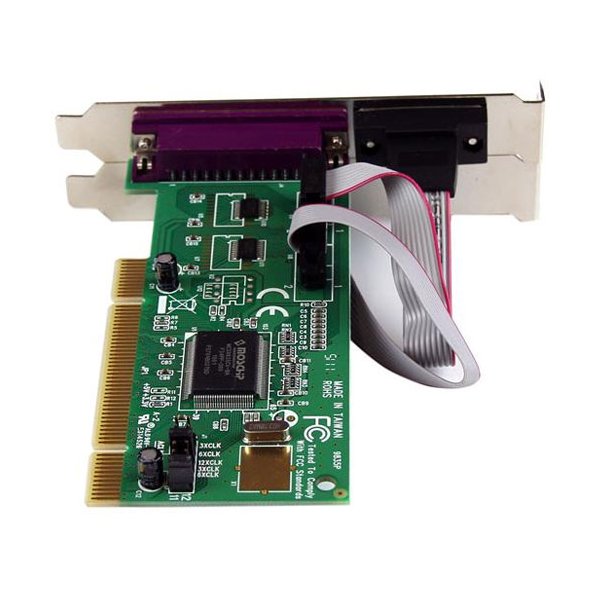

Startech Pci2s1p 2s1p Pci Serial Parallel Combo Card

no surcharge fee
Paypal/MasterCard/Visa/Amex
$62
Startech Pci2s1p 2s1p Pci Serial Parallel Combo CardProduct Overview The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot. Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy. The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support. Product Specifications Warranty Information Warranty Lifetime Physical Characteristics Product Height 4.7 in [120 mm] Product Length 4.7 in [120 mm] Product Weight 2.5 oz [70 g] Product Width 0.8 in [20 mm] Hardware Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX/MosChip - MCS9835CV Interface Parallel   Serial Port Style Integrated on Card Ports 2 Performance FIFO Serial: 32 Bytes Parallel: 16-Bytes Max Baud Rate 115.2 Kbps Maximum Data Transfer Rate Up to 1.5 Mbits/sec. Serial Protocol RS-232 Connector(s) Connector Type(s) 1 - PCI / PCI-X (Universal 3.3 & 5V; 32-bit) Male External Ports 1 - DB-25 (25 pin; D-Sub) Female   2 - DB-9 (9 pin; D-Sub) Male Software OS Compatibility Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0 / 6.0, 2000, 98SE, 95, DOS Windows Server 2012, 2008 R2, 2003 Linux Environmental Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Storage Temperature -20°C to 100°C (-4°F to 212°F) Packaging Information Shipping (Package) Weight 0.5 lb [0.2 kg] What's in the Box Included in Package 1 - PCI 2S1P Card   1 - DB9 Ribbon Cable   3 - Low Profile Brackets   1 - Driver CD   1 - Instruction Manual
62 62 AUD 100
SKU
PCI2S1P
SKU#: PCI2S1P / ITEM NO: 569485 / BRAND: Startech
$62.00
Shipping Calculator:
Loading...
2S1P PCI Serial Parallel Combo Card with 16550 UART - IEEE 1284 Card - Serial Parallel PCI - PCI Serial Adapter

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details

Startech Pci2s1p 2s1p Pci Serial Parallel Combo Card

Product Overview

The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot.

Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy.

The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support.

Product Specifications

Warranty Information

Warranty

Lifetime

Physical Characteristics

Product Height

4.7 in [120 mm]

Product Length

4.7 in [120 mm]

Product Weight

2.5 oz [70 g]

Product Width

0.8 in [20 mm]

Hardware

Bus Type

PCI / PCI-X (5 / 3.3V)

Card Type

Standard Profile (LP bracket incl.)

Chipset ID

ASIX/MosChip - MCS9835CV

Interface

Parallel



Serial

Port Style

Integrated on Card

Ports

2

Performance

FIFO

Serial: 32 Bytes Parallel: 16-Bytes

Max Baud Rate

115.2 Kbps

Maximum Data Transfer Rate

Up to 1.5 Mbits/sec.

Serial Protocol

RS-232

Connector(s)

Connector Type(s)

1 - PCI / PCI-X (Universal 3.3 & 5V; 32-bit) Male

External Ports

1 - DB-25 (25 pin; D-Sub) Female



2 - DB-9 (9 pin; D-Sub) Male

Software

OS Compatibility

Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0 / 6.0, 2000, 98SE, 95, DOS Windows Server 2012, 2008 R2, 2003 Linux

Environmental

Humidity

5~85% RH

Operating Temperature

-10°C to 80°C (14°F to 176°F)

Storage Temperature

-20°C to 100°C (-4°F to 212°F)

Packaging Information

Shipping (Package) Weight

0.5 lb [0.2 kg]

What's in the Box

Included in Package

1 - PCI 2S1P Card



1 - DB9 Ribbon Cable



3 - Low Profile Brackets



1 - Driver CD



1 - Instruction Manual

Brand StarTech
Manufacturer Warranty
Limited Product Lifetime Warranty
Manufacturer Contact Info
http://www.StarTech.com.au
