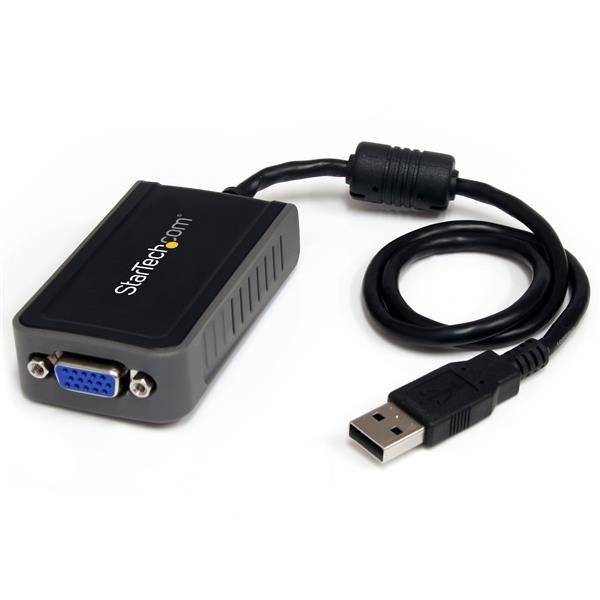

Startech Usb2vgae2 Usb Vga External Monitor Video Adapter

Features

Optimal performance at 1440x900 (higher resolutions supported) and ideal for use with 17" to 19" monitors or smaller
Works with desktop and laptop computers
No power adapter required
Includes easy to use software that allows for, multi-display management and EDID monitor detection for increased compatibility with displays
Simple installation
The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA solution for office applications and Internet browsing.

The USB video adapter features a small form factor and enables a USB 2.0 port to be used with a VGA port. A cost-saving multi-monitor or dual display option that can be used as an external graphics card for either laptop or desktop applications.

The USB video adapter can be used with up to four additional (five total) USB2VGAE2 USB video adapters, creating multiple VGA connections that can be used to further extend or mirror the desktop shown on the existing display - all without having to open the computer case to add extra video cards.

Application Diagram

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Connector A USB A (4 pin) Male Input
Connector B VGA (15 pin, High Density D-Sub) Female Output
Hardware
Chipset ID MCT - Trigger 1+
Memory 16MB SDRAM
USB Pass-Through No
Packaging Information
Shipping (Package) Weight 233.6 g [8.2 oz]
Performance
General Specifications This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.
Supported Resolutions Standard: 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 Widescreen: 1680x1050, 1440x900, 1280x800, 1280x768, 1152x864, 800x600
Physical Characteristics
Cable Length 457.2 mm [18 in]
Color Gray
Product Height 50 mm [2 in]
Product Length 75 mm [3 in]
Product Weight 80 g [2.8 oz]
Product Width 42 mm [1.7 in]
Software
OS Compatibility Windows® 10 (32/64) Windows 8 / 8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64)
Special Notes / Requirements
System and Cable Requirements One available USB 2.0 port
What's in the Box
Included in Package Driver and Software CD

Instruction Manual

USB to VGA Adapter
