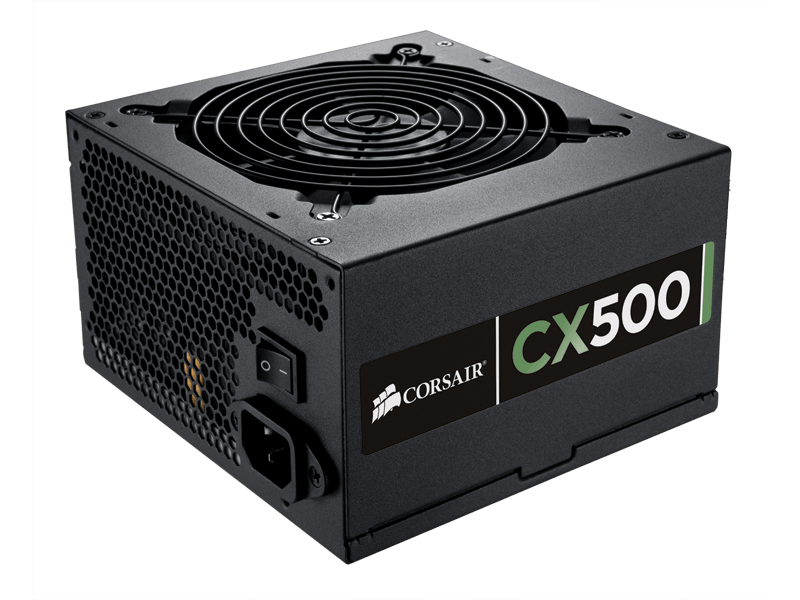

Corsair CX500 500W Power Supply Unit PSU 80 PLUS Bronze

Model: CX500 / Item No: 463961

Corsair CX500 500W Power Supply Unit PSU 80 PLUS Bronze

More Views

Details

The affordable Corsair Builder Series CX500W is not your basic power supply. It features a thermally-controlled 120mm fan for whisper quiet operation and active power factor correction circuitry for clean, reliable power output. The extra long, sleeved cables allow easy integration into a wide variety of cases, and the large number of connectors assures compatibility with nearly all components.

Corsair Builder Series CX500 Features:

  • Supports the latest ATX12V v2.2 standard and is backwards compatible with ATX12V 2.01 systems.
  • Rated up to 500W of continuous power output at 40ºC
  • Extra long fully sleeved cables to support full tower chassis and assist with flexible cable routing.
  • Ultra-quiet 120mm double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.
  • High efficiency topology to ensure energy savings.
  • 99% Active Power Factor Correction provides clean and reliable power to your system.
  • Universal AC input 90~264V automatically scans and detects the correct voltage. No more hassle of flipping that red switch!
  • Dedicated single +12V rail offers maximum compatibility with latest components
  • Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components.
  • Standard ATX PS/2 size: 5.9"(W) x 3.4"(H) X 5.5"(L); 150mm(W) x 86mm(H) x 140mm(L)
  • MTBF: 100,000 Hours

Details

Warranty
Three years
Model
CMPSU-500CX
Weight
20
MTBF
100,000 hours
80 Plus
—
Power
500 Watts
Modular
No
ATX Connector
1
EPS Connector
1
Floppy Connector
1
Four Pin Peripheral Connector
4
PCIe Connector
2
SATA Connector
5


Corsair Builder Series CX500 Specifications

Corsair CX500 Power Supply (CMPSU-500CX)
Voltage +3.3V +5V +12V -12V +5Vsb
Max. Current 25A 20A 34A 0.8A 3A
Max Combined Wattage 130W 408W 9.6W 15W
500 Watts @ 30°C ambient temperature
