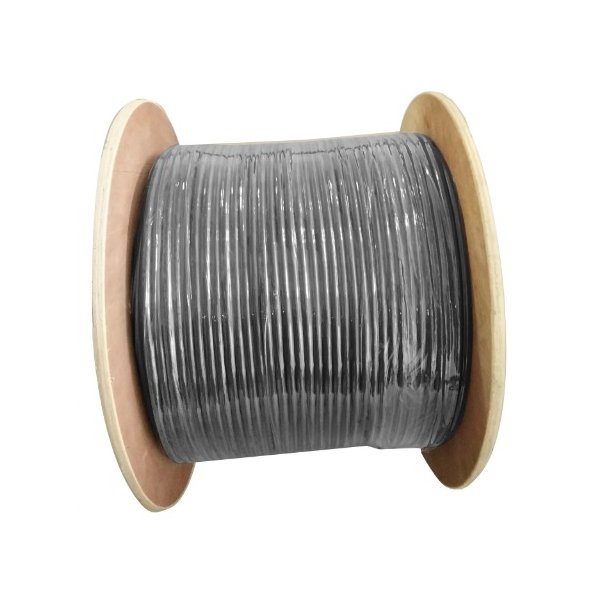

8Ware 350m CAT6A UTP LAN Network Cable Roll on a Reel Black 24AWG PVE HDPE 7.4mm UV Stabilised Jacket
Delivery
Overview
CAT6A cables support networking at gigabit speeds and are backwards compatible with CAT5E cables. Colour coded black for immediate and easy identification.
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
CAT6A cables support networking at gigabit speeds and are backwards compatible with CAT5E cables. Colour coded black for immediate and easy identification.
CAT6A cables support networking at gigabit speeds and are backwards compatible with CAT5E cables. Colour coded black for immediate and easy identification.
-UTP Cable
-24AWG(1/0.508BC)*4P(Conductor OD:0.90mm) & Cross
-OD:6.2MM
-Black 3C shining & white printing text
-N121017 UTP CAT.6A NETWORK CABLE
-ISO/IEC 11801
CABLE SPECIFICATIONS
Cable Type: Cat6A
Connectors: Un-terminated
Length: 350m
Colour: Black
Jacket Material: PVE
Insulation Material: HDPE
Diameter: Nominal 7.4mm
FEATURES
Unterminated
Bare Copper / 24AWG
Impedance Matched - Wire and connectors are carefully matched to virtually eliminate echoing and cancellation, providing high speed, error-free transmission
24AWG Bare Copper Conductors
Metre marked Black UV stabilised jacket
COMPLIANCES
All Proposed Category 5e requirements as per ANSI/TIA, ISO/IEC Standards
ANSI/TIA 568-C.2 CAT.6A and ISO/IEC 11801 CLASS E, 2nd Edition
RoHS compliant for the requirement of European Union issued Directive 2011/65/EU
APPLICATIONS
General Outdoor Application
1000BASE-T Gigabit Ethernet
10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)
100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM
500MHz Broadband Video
Voice, T1, ISDN
WARRANTY
3-year limited warranty.
PACKAGING DIMENSIONS
Weight:13KG
Dimensions: 33x33x30cm
