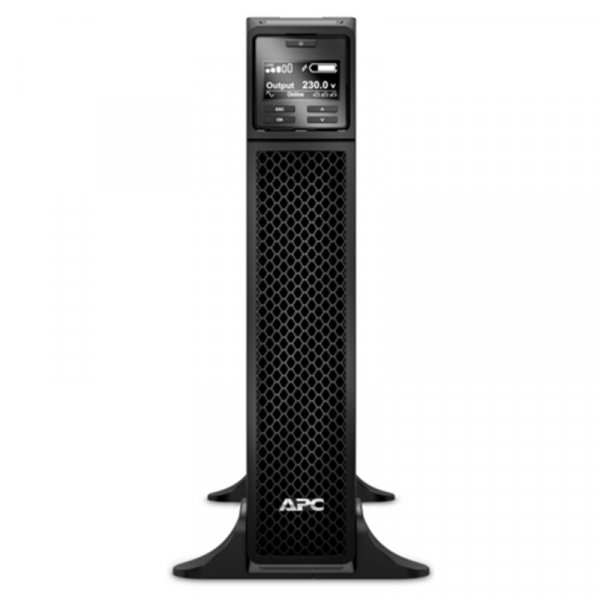

APC SRT2200XLI SRT 2200VA 230V Sinewave Smart UPS
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms. Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Availability Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault. Scalable runtime: Allows additional run time to be quickly added as needed. Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging. Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power. Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability Serial connectivity: Provides management of the UPS via a serial port. LED status indicators: Quickly understand unit and power status with visual indicators. SmartSlot: Customize UPS capabilities with management cards. Network manageable: Provides remote power management of the UPS over the network. InfraStruXure Manager Compatible: Enables centralized management via the APC InfraStruXure Manager.
Protection Frequency and voltage regulation: Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling. Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances. Cold-start capable: Provides temporary battery power when the utility power is out. Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used. Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Resettable circuit breaker: Easy recovery from overloads; no need to replace a fuse.
Marketing Features Save time with easy and convenient remote accessibility: Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities. Low operating and maintenance costs with proven reliability and intelligent battery management: Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Avoids costly power problems by keeping your IT equipment and data protected and available: Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events. Peace of mind that comes with full equipment compatibility and reliability of a leader: Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Adaptability Flash upgradeable firmwareInstall maintenance releases of firmware remotely using FTP. Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment. Plug-and-Play external batteries: Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Serviceability Audible alarms: Provides notification of changing utility power and UPS power conditions Disconnected battery notification: Warns when a battery is not available to provide backup power. Predicitive failure notification: Provides early-warning fault analysis ensuring proactive component replacement. Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced. User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Output Output power capacity: 1.98 KWatts / 2.2 kVA Max Configurable Power (Watts): 1.98 KWatts / 2.2 kVA Nominal Output Voltage: 230V Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Output Voltage Distortion Less than 2% Output Frequency (sync to mains) 50/60Hz +/- 3 Hz Other Output Voltages 220, 240 Load Crest Factor 3 : 1 Topology Double Conversion Online Waveform type Sine wave Output Connections (2) IEC 320 C19 (Battery Backup) (8) IEC 320 C13 (Battery Backup) Bypass Internal Bypass (Automatic and Manual)
Input Nominal Input Voltage: 230V Input frequency: 40 - 70 Hz (auto sensing) Input Connections: IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A Cord Length: 2.44meters Input voltage range for main operations: 160 - 275V Input voltage adjustable range for mains operation: 100 - 275 (half load)V Number of Power Cords: 1 Other Input Voltages: 220, 240
Batteries & Runtime Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules: 1 Typical recharge time: 3hour(s) Replacement Battery: APCRBC141 Expected Battery Life (years): 3 - 5 RBC Quantity: 1 Extendable Run Time: 1 Battery Volt-Amp-Hour Capacity: 367 Extended Run Options: APC-Smart-UPS-SRT-2200VA-230V
Communications & Management Interface Port(s): RJ-45 Serial, Smart-Slot, USB Control panel: Multi-function LCD status and control console Audible Alarm: Audible and visible alarms prioritized by severity Emergency Power Off (EPO): Yes Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering Surge energy rating: 340Joules Filtering: --
Physical Maximum Height: 432mm, 43.2cm Maximum Width: 85mm, 8.5cm Maximum Depth: 584mm, 58.4cm Net Weight: 25.0kg Shipping Weight: 30.84kg Shipping Height: 246mm, 24.6cm Shipping Width: 599mm, 59.9cm Shipping Depth: 810mm, 81.0cm Color: Black Units per Pallet: 12.0
Environmental Operating Environment: 0 - 40 °C Operating Relative Humidity: 0 - 95% no % Operating Elevation: 0-3000meters Storage Temperature: -15 - 45 °C Storage Relative Humidity: 0 - 95% no % Storage Elevation: 0-15000meters Audible noise at 1 meter from surface of unit: 55.0dBA Online thermal dissipation: 703.0BTU/hr Protection Class: IP 20
Conformance Approvals: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), RCM, VDE Standard warranty: 3 years repair or replace (excluding battery) and 2 years for battery
Sustainable Offer Status RoHS: Compliant REACH: Contains No SVHCs Battery Directive: Compliant Battery Notes: ts_Battery_Notes
|Communications||Interface Port(s): RJ-45 Serial, Smart-Slot, USB|
|Battery||Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof|
|Status Indication||Audible Alarm: Audible and visible alarms prioritized by severity|
Maximum Height: 432mm, 43.2cm
Maximum Width: 85mm, 8.5cm
Maximum Depth: 584mm, 58.4cm
Net Weight: 25.0kg
Shipping Weight: 30.84kg
Shipping Height: 246mm, 24.6cm
Shipping Width: 599mm, 59.9cm
Shipping Depth: 810mm, 81.0cm
Units per Pallet: 12.0
Output power capacity: 1.98 KWatts / 2.2 kVA
Battery Volt-Amp-Hour Capacity: 367
|Management||Control panel: Multi-function LCD status and control console|
|Connection Input /output||
Input Connections: IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
2 x IEC 320 C19 (Battery Backup)
8 x IEC 320 C13 (Battery Backup)
|Surge Protection and Filtering||Surge energy rating: 340Joules|
|Energy - Saving Technology||Energy - Saving Technology|
- Manufacturer Warranty
- 3 Years Limited Warranty
- Manufacturer Contact Info
1800 652 725
