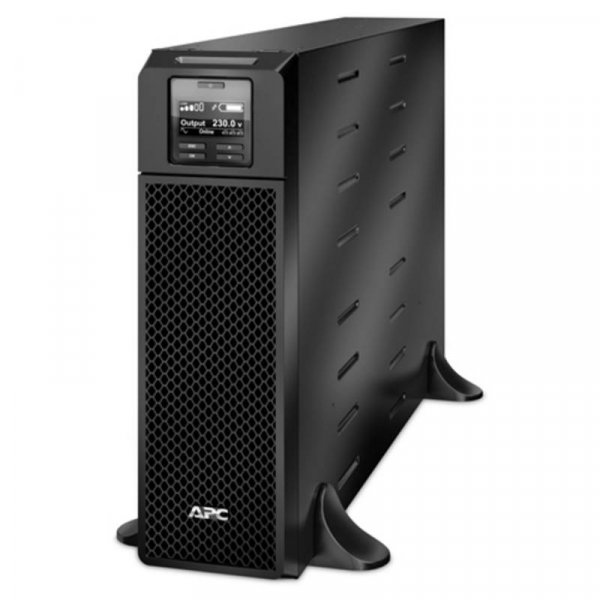

APC SRT5KXLI SRT 5000VA 230V Sinewave Smart UPS
Customer Also Bought
Customer Also Viewed
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Comms cable, Documentation CD, Installation guide, Removable support feet, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card
10/100 BaseT Connection: Connect the device to a network using a 10 or 100 BaseT connection Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
Availability Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power. Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature. Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault. Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging. Scalable runtime: Allows additional run time to be quickly added as needed.
Marketing Features Avoids costly power problems by keeping your IT equipment and data protected and available: Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events. Low operating and maintenance costs with proven reliability and intelligent battery management: Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Save time with easy and convenient remote accessibility: Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities. Peace of mind that comes with full equipment compatibility and reliability of a leader: Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Protection Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling. Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used. Cold-start capable: Provides temporary battery power when the utility power is out. Resettable circuit breaker: Easy recovery from overloads; no need to replace a fuse. Frequency and voltage regulation: Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances. Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Serviceability Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced. Predicitive failure notification: Provides early-warning fault analysis ensuring proactive component replacement. Disconnected battery notification: Warns when a battery is not available to provide backup power. Audible alarms: Provides notification of changing utility power and UPS power conditions User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Adaptability Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment. Flash upgradeable firmware: Install maintenance releases of firmware remotely using FTP. Plug-and-Play external batteries: Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Manageability Serial connectivity: Provides management of the UPS via a serial port. SmartSlot: Customize UPS capabilities with management cards. LED status indicators: Quickly understand unit and power status with visual indicators. Network manageable: Provides remote power management of the UPS over the network. InfraStruXure Manager Compatible: Enables centralized management via the APC InfraStruXure Manager.
Output Output power capacity: 4.5 KWatts / 5.0 kVA Max Configurable Power (Watts): 4.5 KWatts / 5.0 kVA Nominal Output Voltage: 230V Output Voltage Distortion: Less than 2% Output Frequency (sync to mains): 50/60Hz +/- 3 Hz Other Output Voltages: 220, 240 Load Crest Factor: 3 : 1 Topology: Double Conversion Online Waveform type: Sine wave Output Connections: (6) IEC 320 C13 (Battery Backup) (4) IEC 320 C19 (Battery Backup) Bypass: Internal Bypass (Automatic and Manual)
Input Nominal Input Voltage: 230V Input frequency: 40 - 70 Hz (auto sensing) Input Connections: Hard Wire 3 wire (1PH+N+G) Input voltage range for main operations: 160 - 275V Input voltage adjustable range for mains operation: 100 - 275 (half load)V Other Input Voltages: 220, 240
Batteries & Runtime Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules: 2 Typical recharge time: 1.5hour(s) Replacement Battery: APCRBC140 Expected Battery Life (years): 3 - 5 RBC Quantity: 1 Extendable Run Time: 1 Battery Volt-Amp-Hour Capacity: 845 Extended Run Options: APC-Smart-UPS-SRT-5000VA-230V
Communications & Management Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB Control panel: Multi-function LCD status and control console Audible Alarm: Audible and visible alarms prioritized by severity Emergency Power Off (EPO): Yes Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering Surge energy rating: 480Joules
Physical Maximum Height: 432mm, 43.2cm Maximum Width: 130mm, 13.0cm Maximum Depth: 719mm, 71.94cm Net Weight: 54.43kg Shipping Weight: 63.6kg Shipping Height: 330mm, 33.0cm Shipping Width: 610mm, 61.0cm Shipping Depth: 960mm, 96.0cm Color: Black Units per Pallet: 6.0
Environmental Operating Environment: 0 - 40 °C Operating Relative Humidity: 0 - 95% no % Operating Elevation: 0-3000meters Storage Temperature: -15 - 45 °C Storage Relative Humidity: 0 - 95% no % Storage Elevation: 0-15000meters Audible noise at 1 meter from surface of unit: 55.0dBA Online thermal dissipation: 931.0BTU/hr Protection Class: IP 20
Conformance Approvals: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), IRAM, RCM, VDE Standard warranty: 3 years repair or replace (excluding battery) and 2 years for battery
Sustainable Offer Status RoHS: Compliant REACH: Contains No SVHCs
|Battery||Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof|
|Communications||Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB|
|Management||Control panel: Multi-function LCD status and control console|
|Surge Protection and Filtering||Surge energy rating: 480Joules|
Output power capacity: 4.5 KWatts / 5.0 kVA
Battery Volt-Amp-Hour Capacity: 845
|Status Indication||Audible Alarm: Audible and visible alarms prioritized by severity|
|Connection Input /output||
Input Connections: Hard Wire 3 wire (1PH+N+G)
6 x IEC 320 C13 (Battery Backup)
4 x IEC 320 C19 (Battery Backup)
Maximum Height: 432mm, 43.2cm
Maximum Width: 130mm, 13.0cm
Maximum Depth: 719mm, 71.94cm
Net Weight: 54.43kg
Shipping Weight: 63.6kg
Shipping Height: 330mm, 33.0cm
Shipping Width: 610mm, 61.0cm
Shipping Depth: 960mm, 96.0cm
Units per Pallet: 6.0
