Eutonomy Eulink Dali Module For Fibaro 409500570019
Delivery
Overview
The euLINK DALI port can only work with euLINK or euLINK Lite.
Up to 4 euLINK DALI ports can be connected to 1 euLINK. For technical and performance reasons we recommend that up to 2 euLINK DALI ports should be connected to 1 euLINK Lite.
A single euLINK DALI port can control up to 64 DALI lights. Hence one euLINK with the maximum number of 4 euLINK DALI ports can control maximum 256 DALI lights.
Similarilty 1 euLINK Lite with 2 euLINK DALI ports can control up to 128 DALI lights.
FEATURES
- Add DALI communication to euLINK/euLINK Lite
- Works only with euLINK/euLINK Lite
- Control up to 64 DALI lights
- Up to 4 euLINK DALI ports can be connected to 1 euLINK only 2 euLINK DALI ports to 1 euLINK Lite
TECHNICAL SPECIFICATIONS
- From DALI bus
- euLINK DALI port dimensions 35 x 90 x 58 mm
- DIN TH35 rail mounting 2 TE modules
- Working temperature from 0°C to 40°C
- Relative humidity ≤90 non-condensing
- Protection degree IP20
The euLINK DALI port can only work with euLINK or euLINK Lite.
Up to 4 euLINK DALI ports can be connected to 1 euLINK. For technical and performance reasons we recommend that up to 2 euLINK DALI ports should be connected to 1 euLINK Lite.
A single euLINK DALI port can control up to 64 DALI lights. Hence one euLINK with the maximum number of 4 euLINK DALI ports can control maximum 256 DALI lights.
Similarilty 1 euLINK Lite with 2 euLINK DALI ports can control up to 128 DALI lights.
FEATURES
- Add DALI communication to euLINK/euLINK Lite
- Works only with euLINK/euLINK Lite
- Control up to 64 DALI lights
- Up to 4 euLINK DALI ports can be connected to 1 euLINK only 2 euLINK DALI ports to 1 euLINK Lite
TECHNICAL SPECIFICATIONS
- From DALI bus
- euLINK DALI port dimensions 35 x 90 x 58 mm
- DIN TH35 rail mounting 2 TE modules
- Working temperature from 0°C to 40°C
- Relative humidity ≤90 non-condensing
- Protection degree IP20

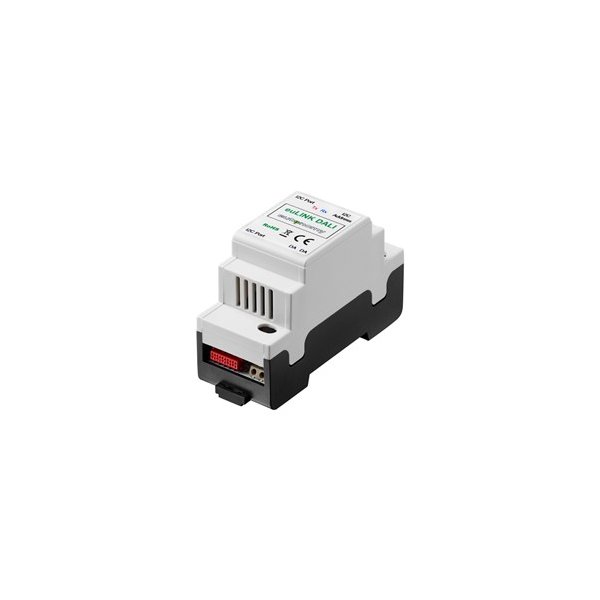

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
