Overview

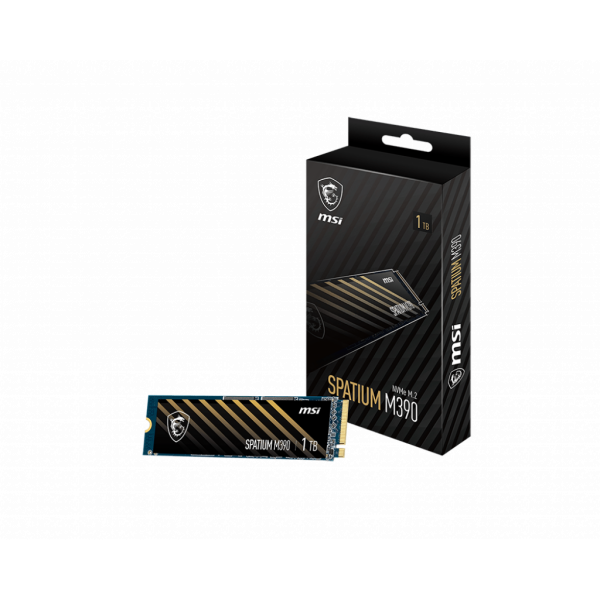

MSI SPATIUM M390 NVMe M.2 SSD 1TB, 3300 MB/s Read, 3000 MB/s Write, PCI-E 3.0, 400 TBW, 5 Year Warranty SPATIUM M390 NVMe M.2 PCIe Gen3x4 interface and complies with the NVMe 1.4 standard Sequential Read speeds up to 3300MB/s and Write speeds up to 3000MB/s Up to 1200 TBW Built-in data security and error-correction capabilities 250GB to 2TB capacities in M.2 2280 form factor Suitable for both desktop and notebook 5-Year Warranty Model Name SPATIUM M390 NVMe M.2 Capacity 1TB Controller PHISON E15T Flash Memory 3D NAND Form Factor M.2 2280 Interface PCIe Gen3x4, NVMe 1.4 Compatibility PCIe Gen3 / Gen2 / Gen1 Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H) Sequential Read up to (MB/s) 3300 Sequential Write up to (MB/s) 3000 Random Read 4KB up to (IOPS) 420K Random Write 4KB up to (IOPS) 550K Maximum Operating Power (W) 4.0 Idle Power PS3 (mW) 30 Low Power L1.2 (mW) 5 Operating Temperatures 0°C – 70°C Storage Temperatures -40°C – 85°C Terabytes Written (TBW) 400 Mean Time Between Failure (MTBF) Up to 1,500,000 Hours Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. Advanced Features TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)
