Overview

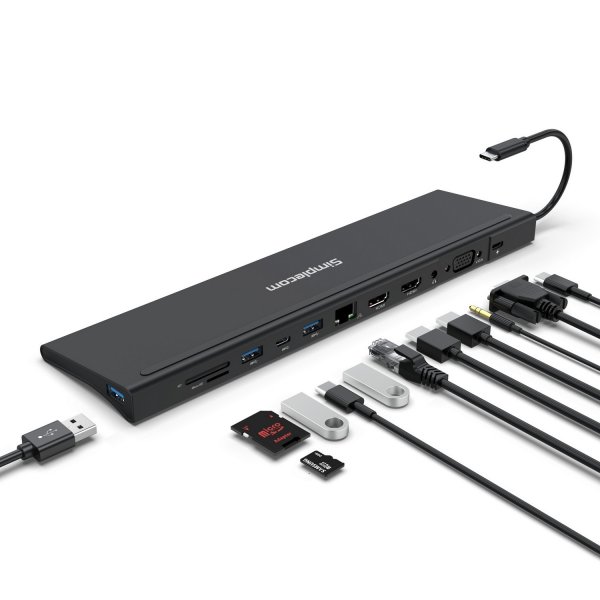

Simplecom CHN622 USB-C 12-in-1 Multiport Docking Station Laptop Stand Dual HDMI + VGA Triple Display Gigabit LAN

CHN622 is a 12-in-1 USB-C multiport docking station for laptop with dual HDMI + VGA triple video outputs. It turns a single USB-C port into 12 ports, including 4 USB ports, 2 card reader slots, dual HDMI, VGA, Gigabit Ethernet, 3.5" audio jack and 100W PD charging.

With this laptop stand style docking station, you can set up the docking station below your laptop to prevent overheating and save your desktop space. If you need to connect with various devices to your laptop at same time, CHN622 is a comprehensive connectivity solution that helps you do more with the devices you already have to increase productivity and convenience.

• 12-in-1 Powerful USB-C Docking Station

A powerful all-in-one USB-C docking station with dual HDMI, VGA outputs, 100W PD charging port, Gigabit Ethernet Port, SD/MicroSD Card reader, 3.5mm audio output and 4 port USB hub (3x SuperSpeed 5Gbps USB ports and 1x HiSpeed 480Mbps USB port)

• Laptop Stand Style Docking Station with Aluminium Housing

This USB-C docking station comes in a study aluminium alloy housing to improve heat dissipation. It can also raise the height of the laptop to optimise air flow and prevent overheating. Moreover, you can work comfortably, by setting up your laptop at a better viewing angle and height.

• Triple Video Outputs with MST Support

This multiport adapter offers one VGA output and dual HDMI outputs. It allows you to connect 3 screens simultaneously, and supports up to 2 extended screens with MST support. Connecting single HDMI supports up to 4K@30Hz and dual HDMI supports up to 1080p@60Hz on each external monitor (Please note MST is for Windows system only, MacOS doesn't support MST)

• SuperSpeed USB Hub with SD/MicroSD Card Reader

3x USB-A ports and 1x USB-C port with a maximum transfer speed up to 5Gbps. It allows you to connect USB Storage Drive, keyboard, mouse, thumb drive or other USB devices.

• 100W USB-C Power Delivery

The USB-C PD Port can charge your connected device while other ports are working. The USB-C port supports PD3.0 and up to 100W Power Delivery charging.

• Gigabit Ethernet

Connect to the network instantly and enjoy stable connection speeds of up to 1000Mbps, Avoid the latency and interference issues for a more consistent, reliable experience when streaming or downloading.

Features

• 12-in-1 USB-C multiport docking station for comprehensive expansion to your laptop
• USB ports support up to 5Gbps transfer rate following USB 3.2 Gen 1 specification
• Dual HDMI plus VGA, triple video outputs with MST Support
• Support single HDMI up to 4K@30Hz and dual HDMI up to 1080p@60Hz
• Support Mirror or Extended mode (maximum 2 extended mode displays)
• Gigabit Ethernet support connection speeds of up to 1000Mbps
• USB-C PD port for charging the laptop with up to 100W of power
• Laptop stand style dock to improve heat dissipation and save desktop space
• Sturdy & stylish aluminium alloy housing
• Plug & play, no driver software required

Specifications

• USB Hub: 1x USB-C (SuperSpeed 5Gbps), 3x USB-A (2x SuperSpeed 5Gbps, 1x HighSpeed 480Mbps)
• Video Output: 2x HDMI, VGA
• HDMI Resolution: Connecting single HDMI supports up to 4K@30Hz and dual HDMI supports up to 1920x1080@60Hz on each external monitor
• VGA Resolution: up to 1080p@60Hz
• MST Support: Yes (for Windows System only)
• RJ45 Port: Gigabit Ethernet (10/100/1000 Mbps)
• Card Reader: SD and MicroSD (HighSpeed 480Mbps)
• PD Charging: USB-C Female (for charging only), up to 100W
• 3.5" Audio Jack: Yes (for audio output only)
• Operation Temperature: 0 - 45°C
• Dimensions: 27.3 x 8 x 1.7cm
• Cable Length: 25cm
• Weight: 250g
• Housing: Aluminium Alloy

System Requirements

• Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
• Operating system: Windows 8 or above, MacOS 10.9 or above

Important Note

• *Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function.
• The USB-C PD port is for PD Charging only, not for data transfer
• Please connect power delivery adapter when using high powered devices
• Not recommend for charging iPad, tablet or other high power USB devices
