StarTech 1 Port USB to Serial RS422/485 Adapter
Delivery

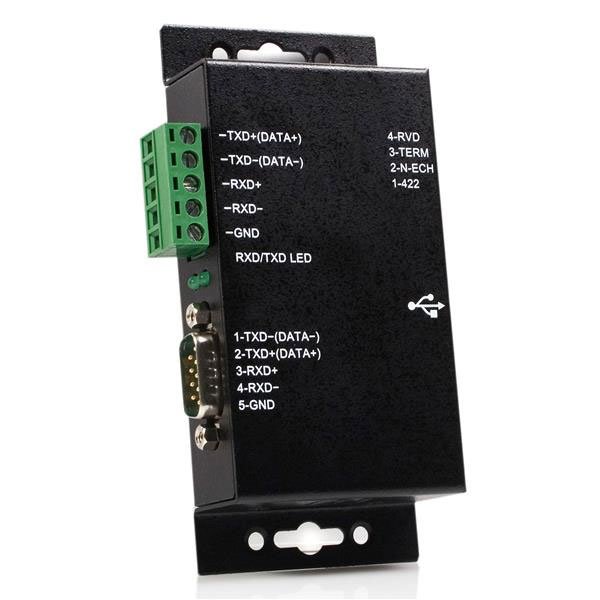

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.
The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.
The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
1-year warranty and free lifetime technical support.
Product Specifications
|
Warranty Information |
|
|---|---|
|
Warranty |
2 Years |
|
Physical Characteristics |
|
|
Cable Length |
6 ft [1.8 m] |
|
Color |
Black |
|
Enclosure Type |
Steel |
|
Product Height |
0.9 in [23 mm] |
|
Product Length |
4.6 in [118 mm] |
|
Product Weight |
6.4 oz [180 g] |
|
Product Width |
2.5 in [64 mm] |
|
Hardware |
|
|
Bus Type |
USB 2.0 |
|
Chipset ID |
FTDI - FT232RL |
|
Interface |
Serial |
|
Port Style |
External Hub |
|
Ports |
1 |
|
Performance |
|
|
Data Bits |
7, 8 |
|
FIFO |
256 Bytes |
|
Isolation |
2500 Vrms |
|
Max Baud Rate |
921.6 Kbps |
|
Parity |
Even, Odd, Mark, Space, None |
|
Serial Protocol |
RS-422/485 |
|
Stop Bits |
1, 2 |
|
Surge Protection |
500W |
|
Connector(s) |
|
|
Connector Type(s) |
1 - USB B (4 pin) Female |
|
External Ports |
1 - DB-9 (9 pin; D-Sub) Male |
|
|
1 - Terminal Block (5 Wire) |
|
Software |
|
|
OS Compatibility |
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+) Windows Server 2012, 2008 R2, 2003 Mac OS 10.x (tested up to 10.10) Linux 2.4.x / 2.6.x |
|
Power |
|
|
Input Current |
200mA |
|
Input Voltage |
5 DC |
|
Power Source |
USB-Powered |
|
Environmental |
|
|
Humidity |
5~95% RH |
|
Operating Temperature |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature |
-20°C to 85°C (-4°F to 185°F) |
|
Packaging Information |
|
|
Shipping (Package) Weight |
0.9 lb [0.4 kg] |
|
What's in the Box |
|
|
Included in Package |
1 - USB to RS422/485 Converter |
|
|
1 - 6ft USB A to B Cable |
|
|
1 - Driver CD |
|
|
1 - User Manual |
| Brand | StarTech |
| Power Input | USB-Powered |
| Ports |
1x USB 1x RS232 |
| Cable Type | N/A |
| Controller | N/A |
| Interface | Serial |
| Dimension |
Product Height 0.9 in [23 mm] Product Length 4.6 in [118 mm] Product Width 2.5 in [64 mm] |
- Manufacturer Warranty
- 1 Year Return to Base Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
