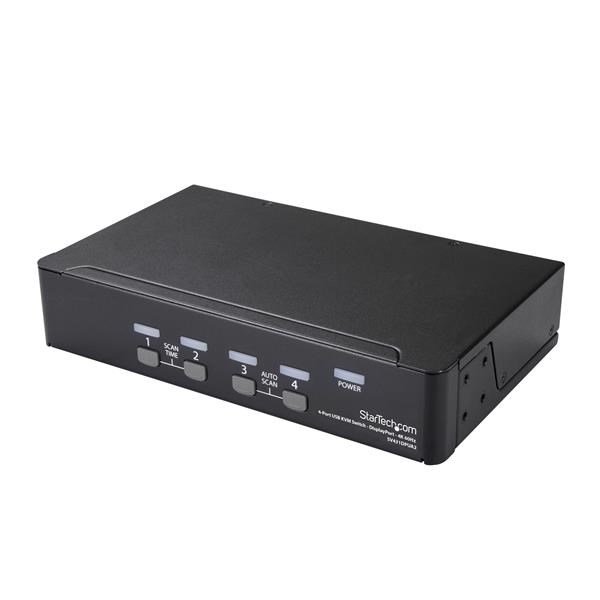

StarTech 4 Port DisplayPort KVM Switch 4K 60Hz DP 1.2 w/USB 2.0 Hub TAA
Delivery
Overview
- IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor | Supports MST Passthrough for multiple displays
- TECH SPECS: 4 Port DP 1.2 KVM | 3840 x 2160 60Hz | 4K UHD | MST Passthrough | 2 Port USB 2.0 Hub | HDCP | 3.5mm Analog Audio | Switching: Hotkey & Push Button | OS Independent | TAA
- Manufacturer Warranty: 3 Years Limited Warranty
- Manufacturer Contact Info: http://www.StarTech.com.au,
- IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor | Supports MST Passthrough for multiple displays
- TECH SPECS: 4 Port DP 1.2 KVM | 3840 x 2160 60Hz | 4K UHD | MST Passthrough | 2 Port USB 2.0 Hub | HDCP | 3.5mm Analog Audio | Switching: Hotkey & Push Button | OS Independent | TAA
- Manufacturer Warranty: 3 Years Limited Warranty
- Manufacturer Contact Info: http://www.StarTech.com.au,
- IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor | Supports MST Passthrough for multiple displays
- TECH SPECS: 4 Port DP 1.2 KVM | 3840 x 2160 60Hz | 4K UHD | MST Passthrough | 2 Port USB 2.0 Hub | HDCP | 3.5mm Analog Audio | Switching: Hotkey & Push Button | OS Independent | TAA
- Manufacturer Warranty: 3 Years Limited Warranty
- Manufacturer Contact Info: http://www.StarTech.com.au,
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
Applications
- High-res digital signage server control
- Multimedia design and production
Specifications
| Warranty Information | Warranty | 3 Years |
|---|---|---|
| Connector(s) | Console Interface(s) | 2 - USB Type-A (4 pin) USB 2.0 |
| 2 - 3.5 mm Mini-Jack (3 Position) | ||
| 1 - DisplayPort (20 pin) | ||
| Host Connectors | 8 - 3.5 mm Mini-Jack (3 Position) | |
| 4 - DisplayPort (20 pin) | ||
| 4 - USB B (4 pin) | ||
| Console Interface(s) | 2 - USB Type-A (4 pin; HID Port) USB 1.1 | |
| Environmental | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) | |
| Humidity | 0% ~ 40% | |
| Hardware | U Height | 1U |
| Audio | Yes | |
| KVM Ports | 4 | |
| PC Interface | USB | |
| PC Video Type | DisplayPort | |
| Number of Monitors Supported | 1 | |
| Rack-Mountable | Optional | |
| Cables Included | No | |
| Daisy-Chain | No | |
| Indicators | LED Indicators | 1 - Power |
| 4 - Red - Select indicator (One LED per port) | ||
| 4 - Green - Online indicator (One LED per port) | ||
| Packaging Information | Shipping (Package) Weight | 3.5 lb [1.6 kg] |
| Package Length | 16.1 in [40.9 cm] | |
| Package Width | 8.3 in [21.2 cm] | |
| Package Height | 3.4 in [87 mm] | |
| Performance | On-Screen Display | No |
| IP Control | No | |
| Hot-Key Selection | Yes | |
| Maximum Data Transfer Rate | 480 Mbps (USB 2.0) | |
| Maximum Digital Resolutions | 3840 x 2160 (Ultra HD 4K) @ 60hz | |
| Wide Screen Supported | Yes | |
| Auto Scan | 3, 8, 15 & 30 seconds | |
| Maximum Number of Users | 1 | |
| Port Selection Support | Push Button and Hotkeys | |
| MTBF | 138327 hours | |
| Physical Characteristics | Color | Black |
| Material | Steel | |
| Product Length | 8.7 in [22 cm] | |
| Product Width | 5.2 in [131 mm] | |
| Product Height | 1.8 in [4.5 cm] | |
| Weight of Product | 36.8 oz [1042 g] | |
| Power | Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC | |
| Input Current | 0.6 A | |
| Output Voltage | 12V DC | |
| Output Current | 1.5 A | |
| Center Tip Polarity | Positive | |
| Plug Type | M | |
| Power Consumption (In Watts) | 18 W | |
| Software | OS Compatibility | OS independent: No software or drivers required |
| What's in the Box | Included in Package | 1 - KVM switch |
| 4 - foot pads | ||
| 1 - universal power adapter (NA/JP, EU, UK, ANZ) | ||
| 1 - quick-start guide |
