StarTech FTDI USB to Serial Adapter Cable w/ COM
Delivery
Overview

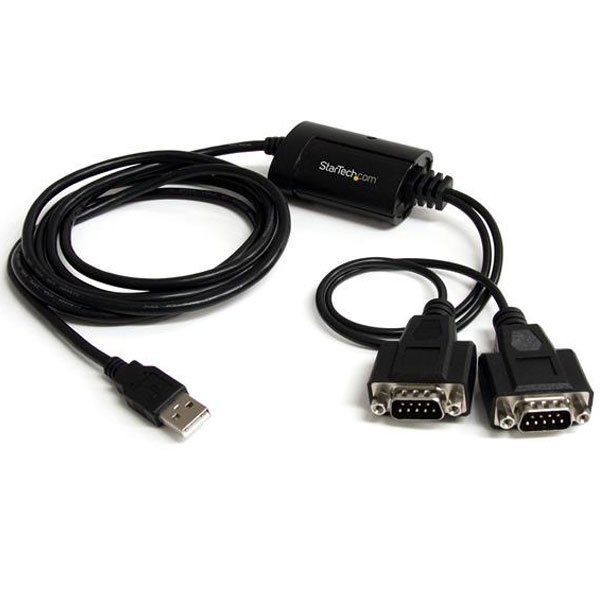

2 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention - USB to DB9 - USB to Serial Port
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview
The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.
2-year warranty and free lifetime technical support.
Product Specifications
|
Warranty Information |
|
|---|---|
|
Warranty |
2 Years |
|
Physical Characteristics |
|
|
Cable Length |
6 ft [1.8 m] |
|
Color |
Black |
|
Enclosure Type |
Plastic |
|
Product Height |
0.8 in [20 mm] |
|
Product Length |
84 in [2133 mm] |
|
Product Weight |
5.6 oz [159 g] |
|
Product Width |
1.8 in [45 mm] |
|
Hardware |
|
|
Bus Type |
USB 2.0 |
|
Chipset ID |
FTDI - FT2232D |
|
Interface |
Serial |
|
Port Style |
Cable Adapter |
|
Ports |
2 |
|
Performance |
|
|
Data Bits |
7, 8 |
|
FIFO |
128 Bytes |
|
Max Baud Rate |
921.6 Kbps |
|
Parity |
None, Odd, Even, Mark, Space |
|
Serial Protocol |
RS-232 |
|
Stop Bits |
1, 2 |
|
Connector(s) |
|
|
Connector Type(s) |
1 - USB A (4 pin) Male |
|
|
2 - DB-9 (9 pin; D-Sub) Male |
|
Software |
|
|
OS Compatibility |
Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, CE(4.2+) Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.x (tested up to 10.10), 9.x Linux |
|
Special Notes / Requirements |
|
|
System and Cable Requirements |
One available USB 1.1 (or better) port |
|
Power |
|
|
Power Source |
USB-Powered |
|
Environmental |
|
|
Humidity |
5~95% RH |
|
Operating Temperature |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature |
-20°C to 85°C (-4°F to 185°F) |
|
Packaging Information |
|
|
Shipping (Package) Weight |
0.5 lb [0.2 kg] |
|
What's in the Box |
|
|
Included in Package |
1 - 2 Port USB to RS-232 Serial Adapter |
|
|
1 - Wall Mounting Kit |
|
|
1 - Driver CD |
|
|
1 - Instruction Manual |
| Brand | StarTech |
| Ports | 2 |
| Dimension |
Product Height 0.8 in [20 mm] Product Length 84 in [2133 mm] Product Width 1.8 in [45 mm] |
| Cable Type | USB to Serial Adapter Cable |
| Interface | Serial |
| Speed | 921.6 Kbps |
| Power Input | USB-Powered |
