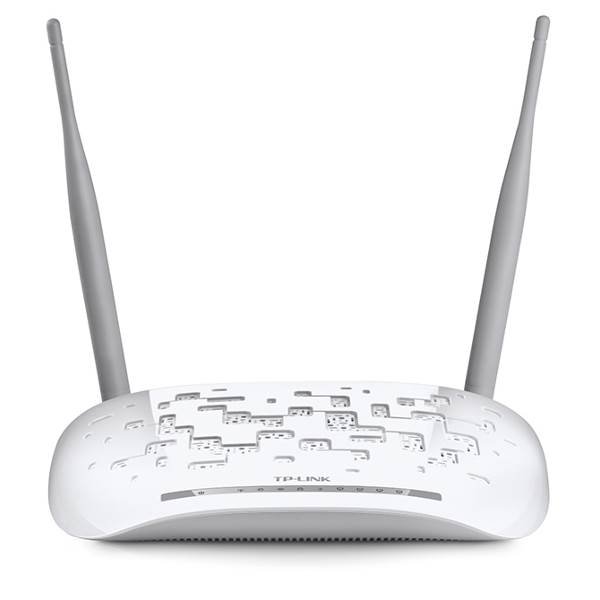

Tp-link Td-w9970 300mbps Wireless N Usb Vdsl2 Modem Router
Delivery
In Stock
Usually ships within 24 hours*
no surcharge fee
Paypal/MasterCard/Visa/Amex
$77
SKU
TD-W9970
SKU#: TD-W9970 / ITEM NO: 584488 / BRAND: TP-Link
$77.00
Shipping Calculator:
Loading...
Overview
Details:
TP-LINK's TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks. Supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.Specifications:
HARDWARE FEATURES - Interfaces:
- 410/100Mbps RJ45 Ports
- 1 RJ11 Port
- 1 USB 2.0 Port
- Button:
- 1 Power On/Off Button
- 1 WPS/RESET Button
- 1 Wi-Fi On/Off Switch
- Dimensions: (W X D X H) 195×130×36mm
- External Power Supply:12VDC/1A
- IEEE Standards:IEEE 802.3, 802.3u
- VDSL2 Standards:
- ITU-T G.993.2
- ITU-T G.993.5 (G.vector)
- ADSL Standards:
- Full-rate ANSI T1.413 Issue 2
- ITU-T G.992.1(G.DMT)
- ITU-T G.994.1 (G.hs)
- ITU-T G.995.1
- ADSL2 Standards:ITU-T G.992.3 (G.dmt.bis)
- ADSL2+ Standards:ITU-T G.992.5
- Antenna Type:Omni directional, Fixed
- Antenna Gain:2 x 5dBi
WIRELESS FEATURES - Wireless Standards:IEEE 802.11b, 802.11g, 802.11n
- Frequency:2.400-2.4835GHz
- Transmit Power: <20dBm(EIRP)
- Wireless Security:
- Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
- Wireless MAC Filtering
SOFTWARE FEATURES - Quality of Service: WMM, Bandwidth Control (IP QoS)
- SecurityNAT Firewall:
- SPI Firewall,
- MAC / IP / URL Filtering
- IPv6:
- IPv6 and IPv4 dual stack
- Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
- Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
- Management:
- Web Based Configuration(HTTP),
- Remote management,
- Telnet management,
- Command Line Interface,
- SSL for TR-069,
- SNMP V1/V2C,
- Web Based Firmware Upgrade,
- CWMP(TR-069),
- Diagnostic Tools
- Port Forwarding:Virtual server, Port Triggering, UPnP, DMZ, Manage Control
- VPN Pass-Through:PPTP, L2TP, IPSec Pass-through
- ATM/PPP Protocols:
- ATM Forum UNI3.1/4.0
- PPP over ATM (RFC 2364)
- PPP over Ethernet (RFC2516)
- IPoA (RFC1577/2225)
- PVC - Up to 8 PVCs
- Advanced Features:
- Ethernet WAN (EWAN)
- Guest Network, Wireless Schedule
- Parent Control
- Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
- Dynamic Host Configuration Protocol (DHCP), DHCP relay;
- Network Address Translation (NAT);
- PVC/Ethernet Port Grouping
- Static Routing, RIP v1/v2 (optional);
- DNS Relay, DDNS,
- IGMP snooping V1/2
- IGMP Multicast,
- UPnP
- USB Sharing:
- Storage Sharing
- FTP Server
- Media Server
- Print Server
- IGMP:
- IGMP snooping V1/V2/V3
- IGMP Multicast
- IPSec VPN:
- 10 IPSec VPN Tunnels
- LAN-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- MD5, SHA1 Authentication Algorithm
- Manual, IKE Key Management Mode
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
OTHERS - Certification:CE, FCC, RoHS
- Package Contents:
- TD-W9970
- External Splitter
- RJ-11 Telephone Line
- RJ-45 Ethernet Cable
- Quick Installation Guide
- Resource CD
- Power Adapter
- System Requirements:Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system
- Environment:
- Operating Temperature: 0~40 (32~104)
- Storage Temperature: -40~70 (-40~158)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- 410/100Mbps RJ45 Ports
- 1 RJ11 Port
- 1 USB 2.0 Port
- 1 Power On/Off Button
- 1 WPS/RESET Button
- 1 Wi-Fi On/Off Switch
- ITU-T G.993.2
- ITU-T G.993.5 (G.vector)
- Full-rate ANSI T1.413 Issue 2
- ITU-T G.992.1(G.DMT)
- ITU-T G.994.1 (G.hs)
- ITU-T G.995.1
- Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
- Wireless MAC Filtering
- SPI Firewall,
- MAC / IP / URL Filtering
- IPv6 and IPv4 dual stack
- Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
- Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
- Web Based Configuration(HTTP),
- Remote management,
- Telnet management,
- Command Line Interface,
- SSL for TR-069,
- SNMP V1/V2C,
- Web Based Firmware Upgrade,
- CWMP(TR-069),
- Diagnostic Tools
- ATM Forum UNI3.1/4.0
- PPP over ATM (RFC 2364)
- PPP over Ethernet (RFC2516)
- IPoA (RFC1577/2225)
- PVC - Up to 8 PVCs
- Ethernet WAN (EWAN)
- Guest Network, Wireless Schedule
- Parent Control
- Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
- Dynamic Host Configuration Protocol (DHCP), DHCP relay;
- Network Address Translation (NAT);
- PVC/Ethernet Port Grouping
- Static Routing, RIP v1/v2 (optional);
- DNS Relay, DDNS,
- IGMP snooping V1/2
- IGMP Multicast,
- UPnP
- Storage Sharing
- FTP Server
- Media Server
- Print Server
- IGMP snooping V1/V2/V3
- IGMP Multicast
- 10 IPSec VPN Tunnels
- LAN-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- MD5, SHA1 Authentication Algorithm
- Manual, IKE Key Management Mode
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
- TD-W9970
- External Splitter
- RJ-11 Telephone Line
- RJ-45 Ethernet Cable
- Quick Installation Guide
- Resource CD
- Power Adapter
- Operating Temperature: 0~40 (32~104)
- Storage Temperature: -40~70 (-40~158)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Details:
TP-LINK's TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.
Supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.

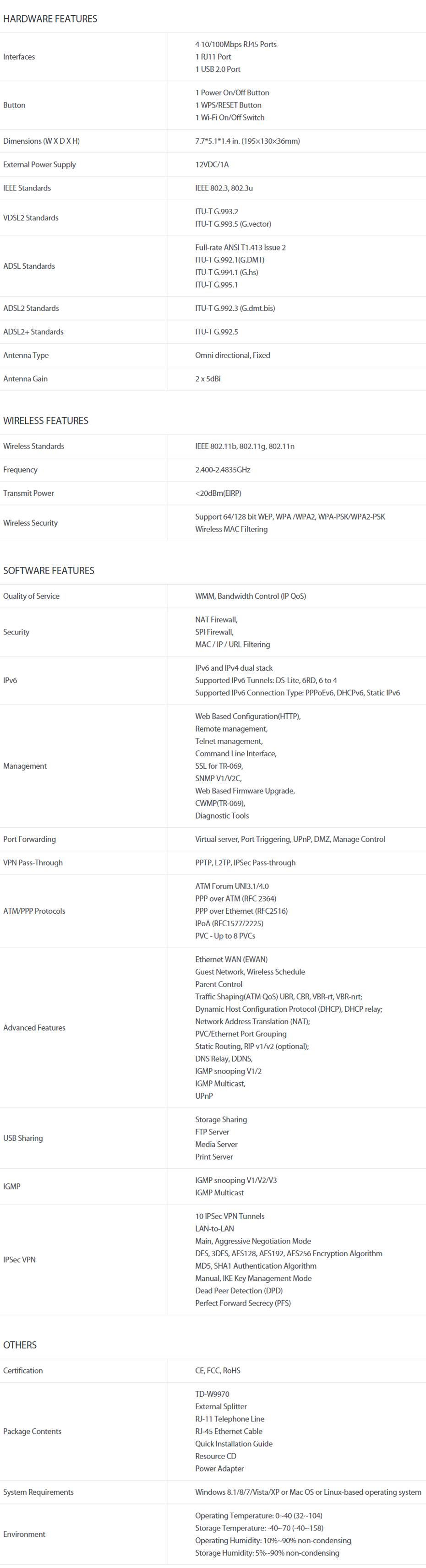

Specifications:
HARDWARE FEATURES
- Interfaces:
- 410/100Mbps RJ45 Ports
- 1 RJ11 Port
- 1 USB 2.0 Port
- Button:
- 1 Power On/Off Button
- 1 WPS/RESET Button
- 1 Wi-Fi On/Off Switch
- Dimensions: (W X D X H) 195×130×36mm
- External Power Supply:12VDC/1A
- IEEE Standards:IEEE 802.3, 802.3u
- VDSL2 Standards:
- ITU-T G.993.2
- ITU-T G.993.5 (G.vector)
- ADSL Standards:
- Full-rate ANSI T1.413 Issue 2
- ITU-T G.992.1(G.DMT)
- ITU-T G.994.1 (G.hs)
- ITU-T G.995.1
- ADSL2 Standards:ITU-T G.992.3 (G.dmt.bis)
- ADSL2+ Standards:ITU-T G.992.5
- Antenna Type:Omni directional, Fixed
- Antenna Gain:2 x 5dBi
WIRELESS FEATURES
- Wireless Standards:IEEE 802.11b, 802.11g, 802.11n
- Frequency:2.400-2.4835GHz
- Transmit Power: <20dBm(EIRP)
- Wireless Security:
- Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
- Wireless MAC Filtering
SOFTWARE FEATURES
- Quality of Service: WMM, Bandwidth Control (IP QoS)
- SecurityNAT Firewall:
- SPI Firewall,
- MAC / IP / URL Filtering
- IPv6:
- IPv6 and IPv4 dual stack
- Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
- Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
- Management:
- Web Based Configuration(HTTP),
- Remote management,
- Telnet management,
- Command Line Interface,
- SSL for TR-069,
- SNMP V1/V2C,
- Web Based Firmware Upgrade,
- CWMP(TR-069),
- Diagnostic Tools
- Port Forwarding:Virtual server, Port Triggering, UPnP, DMZ, Manage Control
- VPN Pass-Through:PPTP, L2TP, IPSec Pass-through
- ATM/PPP Protocols:
- ATM Forum UNI3.1/4.0
- PPP over ATM (RFC 2364)
- PPP over Ethernet (RFC2516)
- IPoA (RFC1577/2225)
- PVC - Up to 8 PVCs
- Advanced Features:
- Ethernet WAN (EWAN)
- Guest Network, Wireless Schedule
- Parent Control
- Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
- Dynamic Host Configuration Protocol (DHCP), DHCP relay;
- Network Address Translation (NAT);
- PVC/Ethernet Port Grouping
- Static Routing, RIP v1/v2 (optional);
- DNS Relay, DDNS,
- IGMP snooping V1/2
- IGMP Multicast,
- UPnP
- USB Sharing:
- Storage Sharing
- FTP Server
- Media Server
- Print Server
- IGMP:
- IGMP snooping V1/V2/V3
- IGMP Multicast
- IPSec VPN:
- 10 IPSec VPN Tunnels
- LAN-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- MD5, SHA1 Authentication Algorithm
- Manual, IKE Key Management Mode
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
OTHERS
- Certification:CE, FCC, RoHS
- Package Contents:
- TD-W9970
- External Splitter
- RJ-11 Telephone Line
- RJ-45 Ethernet Cable
- Quick Installation Guide
- Resource CD
- Power Adapter
- System Requirements:Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system
- Environment:
- Operating Temperature: 0~40 (32~104)
- Storage Temperature: -40~70 (-40~158)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
