Tp-link Tl-fc311b-20 Gigabit Wdm Media Converter - Ieee 802.3u 1550nm 20km 9/125 Îœm Single-mode Fiber (compatible With Tl-fc311a-20)
Delivery
In Stock
Usually ships within 24 hours*
no surcharge fee
Paypal/MasterCard/Visa/Amex
$57
SKU
TL-FC311B-20
SKU#: TL-FC311B-20 / ITEM NO: 787255 / BRAND: TP-Link
$57.00
Shipping Calculator:
Loading...
Overview
TP-Link TL-FC311B-20 Gigabit WDM Media Converter • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode • Adopts WDM technology, transmitting and receiving data on one single fibre • Extends fibre distance up to 20 km (for TL-FC311A-20 & TL-FC311B-20) NETWORK Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z ENVIRONMENT Operating Temperature 0˚C to 50˚C (32˚F to 122˚F) Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F) Operating Humidity 10% to 90% RH non-condensing Storage Humidity 5% to 90% RH non-condensing HARDWARE FEATURES Interface • 1× Gigabit SC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) Network Media • Single-mode Fiber • UTP category 5, 5e cable (maximum 100m) Power Supply External Power Adapter: 5 V/0.6 A LED PWR, Link/Act Dimensions ( W x D x H ) 3.7×2.9×1.1 in (94.5×73.0×27.0 mm) Wave Length • 1310 nm TX • 1550 nm RX MEDIA CONVERTER & MODULE Fiber Type 9/125 μm single-mode fiber
TP-Link TL-FC311B-20 Gigabit WDM Media Converter
• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fibre
• Extends fibre distance up to 20 km (for TL-FC311A-20 & TL-FC311B-20)
NETWORK
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
ENVIRONMENT
Operating Temperature 0ËšC to 50ËšC (32ËšF to 122ËšF)
Storage Temperature -40ËšC to 70ËšC (-40ËšF to 158ËšF)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
HARDWARE FEATURES
Interface • 1× Gigabit SC Fiber Port
• 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media • Single-mode Fiber
• UTP category 5, 5e cable (maximum 100m)
Power Supply External Power Adapter: 5 V/0.6 A
LED PWR, Link/Act
Dimensions ( W x D x H ) 3.7×2.9×1.1 in (94.5×73.0×27.0 mm)
Wave Length • 1310 nm TX
• 1550 nm RX
MEDIA CONVERTER & MODULE
Fiber Type 9/125 μm single-mode fiber

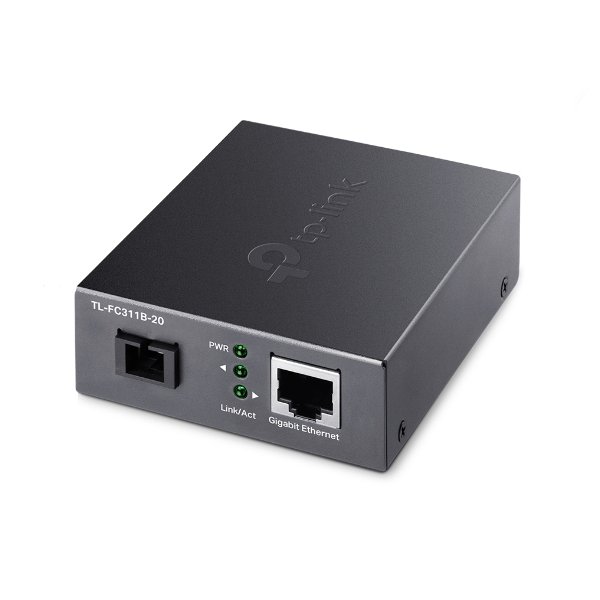

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
