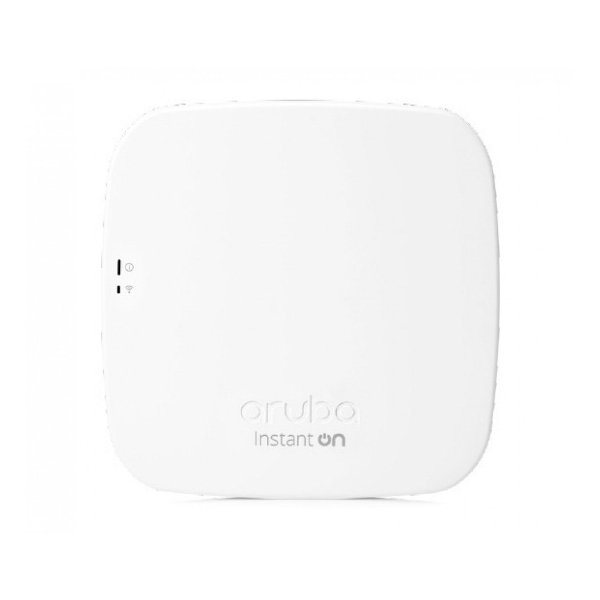

HP R2X06A Aruba Instant On AP15 (RW) 4X4 11ac Wave2 Indoor Access Point
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
KEY FEATURES
Wi-Fi designed with small businesses in mind
Aruba Instant On AP15
Smart Mesh technology
802.11ac Wave 2, 4X4:4 MU-MIMO technology
Remote management and monitoring capability
Separate guest and employee Wi-Fi network
Mobile app and cloud portal
WHAT'S IN THE BOX:
Aruba Instant On AP15 Indoor Access Point
Aruba Instant On AP15 Quick Start guide
Ceiling rail mount clip
Ethernet cable
Solid surface mount clip
RADIOS: Dual radio for simultaneous dual-band operation 5 GHz 802.11ac 4x4 MIMO for up to 1733 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5) 2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
INTERFACES: Uplink Gigabit Ethernet port, with PoE-in support (802.3af) DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot
PHYSICAL SPECIFICATIONS: 183mm x 183mm x 41mm, excluding mount accessories Weight: 674g
POWER: Power over Ethernet (POE): 802.3af (class 3) or DC power (12V) Note: Power sources are sold separately
WARRANTY & SUPPORT:
Aruba Instant On 1 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products
| Interfaces/Ports | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Number of Network (RJ-45) Ports: | 1 |
| PoE PD Port: | Yes |
| USB: | Yes |
| Miscellaneous | |
|---|---|
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Physical Characteristics | |
|---|---|
| Depth: | 183 mm |
| Form Factor: | Ceiling Mountable |
| Wall Mountable | |
| Height: | 41 mm |
| Weight (Approximate): | 674 g |
| Width: | 183 mm |
| Technical Information | |
|---|---|
| Frequency Band: | 2.40 GHz |
| 5 GHz | |
| MIMO Technology: | Yes |
| Wireless LAN Standard: | IEEE 802.11ac |
| Wireless Transmission Speed: | 1.99 Gbit/s |
