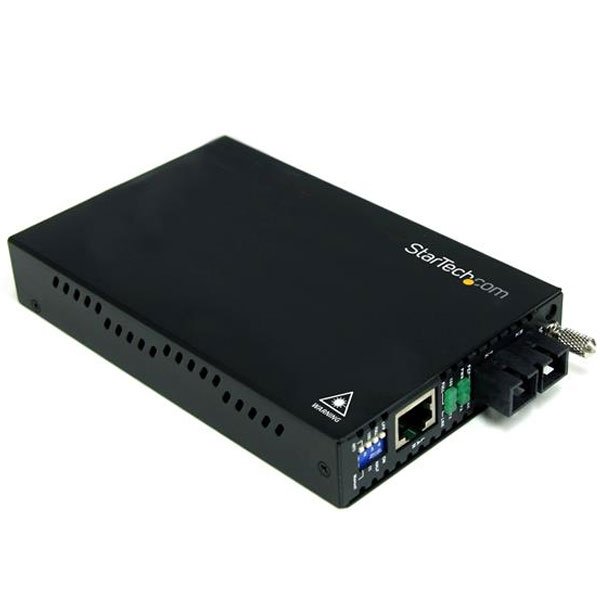

StarTech Ethernet to SC MM Fiber Media Converter
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
-
StarTech 7 Port USB 2.0 Hub
$58.00
Product Overview
The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Specifications
|
Warranty Information |
|
|---|---|
|
Warranty |
2 Years |
|
Physical Characteristics |
|
|
Color |
Black |
|
Enclosure Type |
Steel |
|
Product Height |
0.9 in [24 mm] |
|
Product Length |
6 in [153 mm] |
|
Product Weight |
21.2 oz [600 g] |
|
Product Width |
3.4 in [87 mm] |
|
Hardware |
|
|
PoE |
No |
|
WDM |
No |
|
Performance |
|
|
Auto MDIX |
Yes |
|
Fiber Operating Mode |
Half/Full-Duplex |
|
Fiber Type |
Multi Mode |
|
Max Transfer Distance |
2 km (1.2 mi) |
|
Maximum Data Transfer Rate |
200 Mbps (Full Duplex Mode) |
|
Wavelength |
1310nm |
|
Connector(s) |
|
|
Local Unit Connectors |
1 - Fiber Optic SC Duplex Female |
|
|
1 - RJ-45 Female |
|
Power |
|
|
Center Tip Polarity |
Positive |
|
Input Current |
0.36A |
|
Input Voltage |
115 ~ 230 AC |
|
Output Current |
1A |
|
Output Voltage |
12 DC |
|
Plug Type |
M |
|
Power Source |
AC Adapter Included |
|
Environmental |
|
|
Humidity |
10~90% RH |
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
|
Packaging Information |
|
|
Shipping (Package) Weight |
1.9 lb [0.9 kg] |
|
What's in the Box |
|
|
Included in Package |
1 - Fiber Media Converter |
|
|
1 - Universal Power Adapter (NA/EU/UK) or AU in Australia |
|
|
1 - Instruction Manual |
| Brand | StarTech |
| Interface | 1-RJ-45 Female |
| Data Rates | 200 Mbps (Full Duplex Mode) |
