Product Overview

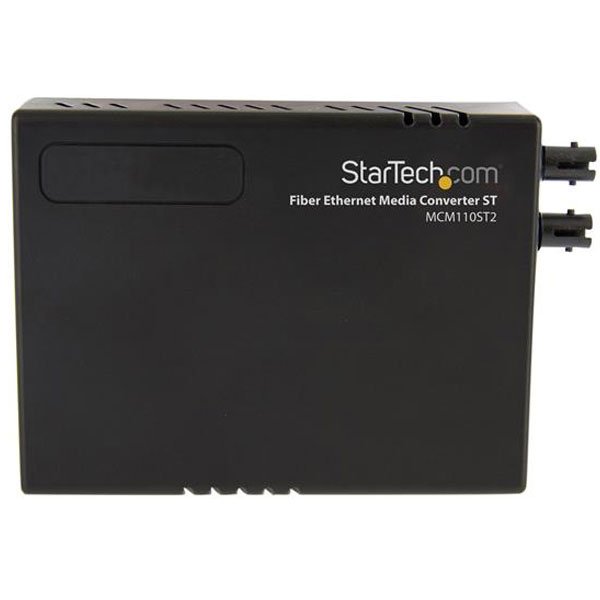

The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Product Specifications
|
Warranty Information |
|
|---|---|
|
Warranty |
2 Years |
|
Physical Characteristics |
|
|
Color |
Black |
|
Enclosure Type |
Plastic |
|
Product Height |
0.8 in [20 mm] |
|
Product Length |
3.7 in [95 mm] |
|
Product Weight |
3.2 oz [90.5 g] |
|
Product Width |
3 in [75 mm] |
|
Hardware |
|
|
Industry Standards |
IEEE 802.3 10BASE-T |
|
|
IEEE 802.3u 100BASE-FX |
|
|
IEEE 802.3u 100BASE-TX |
|
PoE |
No |
|
WDM |
No |
|
Performance |
|
|
Fiber Operating Mode |
Half/Full-Duplex |
|
Fiber Type |
Multi Mode |
|
Max Transfer Distance |
2 km (1.2 mi) |
|
Maximum Data Transfer Rate |
10/100Mbps |
|
MTBF |
65,000 Hours |
|
Optical Power |
-14 ~ -20 dBm |
|
Power Budget |
11 dB |
|
Sensitivity |
-31 dBm |
|
Wavelength |
1310nm |
|
Connector(s) |
|
|
Local Unit Connectors |
1 - Fiber Optic ST Duplex Female |
|
|
1 - RJ-45 Female |
|
Indicators |
|
|
LED Indicators |
1 - Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link) |
|
|
1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault |
|
|
1 - Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link) |
|
|
1 - Full ( Full duplex / Half duplex) |
|
|
1 - Power |
|
|
1 - Speed (10 or 100 Mbps) |
|
Power |
|
|
Center Tip Polarity |
Positive |
|
Input Voltage |
115 AC |
|
Output Current |
0.2A |
|
Output Voltage |
12 DC |
|
Plug Type |
M |
|
Power Source |
AC Adapter Included |
|
Environmental |
|
|
Humidity |
10~90% RH |
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
|
Packaging Information |
|
|
Shipping (Package) Weight |
0.9 lb [0.4 kg] |
|
What's in the Box |
|
|
Included in Package |
1 - Media Converter |
|
|
1 - Power Adapter |
|
|
1 - Instruction Manual |
| Brand | StarTech |
| LED Indicator |
1 - Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link) 1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault 1 - Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link) 1 - Full ( Full duplex / Half duplex) 1 - Power 1 - Speed (10 or 100 Mbps) |
| Interface | 1 - RJ-45 Female |
| Data Rates | 10/100Mbps |
| Network Media |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-FX IEEE 802.3u 100BASE-TX |
