Startech Usb32hdeh Usb 3 To Hdmi Adapter W/ 1-port Usb Hub
Delivery
Overview
USB 3.0 to HDMI External Video Card Multi-Monitor Graphics Adapter With 1-Port USB Hub - 1920x1200 / 1080p - USB 3 Video Card Adapter
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
-
Ubiquiti Gateway Lite UXG-Lite
$262.00
Customer Also Viewed
Product Overview

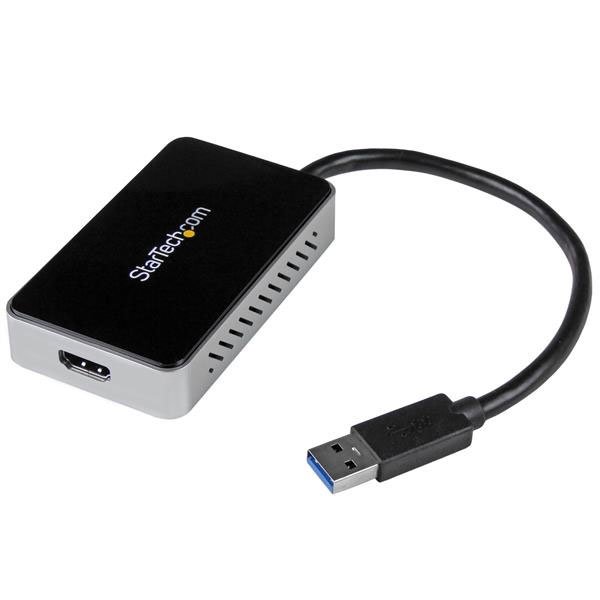

The USB32HDEH USB 3.0 to HDMI Adapter turns a USB 3.0 port into an HDMI output port with 1920x1200/1080p video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the HDMI adapter – an ideal workaround for Ultrabook or laptop users, where only a limited number of USB ports are available.
Functioning as an external graphics card, this USB to HDMI adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your HDMI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity. The included HDMI to DVI adapter also allows you to use this device with a DVI display.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements: CPU: Quad Core 2.4GHz or Higher (i5 recommended) RAM: 4GB or higher
Product Specifications
|
Warranty Information |
|
|---|---|
|
Warranty |
2 Years |
|
Hardware |
|
|
Audio |
Yes |
|
Chipset ID |
MCT Trigger 5 T5-302 |
|
Industry Standards |
SuperSpeed USB 3.0, USB 2.0 |
|
Memory |
16MB DDR II |
|
Output Signal |
HDMI |
|
USB Pass-Through |
Yes |
|
Performance |
|
|
Audio Specifications |
2-Channel Stereo (48Khz) |
|
Maximum Digital Resolutions |
1920x1200 |
|
Supported Resolutions |
Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
|
Wide Screen Supported |
Yes |
|
Connector(s) |
|
|
Connector A |
1 - USB 3.0 A (9 pin; SuperSpeed) Male |
|
Connector B |
1 - HDMI (19 pin) Female |
|
|
1 - USB 3.0 A (9 pin; SuperSpeed) Female |
|
Software |
|
|
Microsoft WHQL Certified |
Yes |
|
OS Compatibility |
Windows 10 (32/64) Windows 8 / 8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64) |
|
Special Notes / Requirements |
|
|
Note |
Connect a maximum of five USB32HDEH adapters on a single PC - See manual for system requirements |
|
System and Cable Requirements |
CPU: i3 Dual core 2.8GHz RAM: 2GB or higher Full HD Video: CPU: Quad Core 2.4GHz or Higher (i5 recommended) RAM: 4GB or higher |
|
Power |
|
|
Power Source |
USB-Powered |
|
Environmental |
|
|
Humidity |
< 85% non-condensing |
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
Storage Temperature |
-10°C to 75°C (14°F to 167°F) |
|
Physical Characteristics |
|
|
Cable Length |
6.3 in [160 mm] |
|
Color |
Black |
|
Enclosure Type |
Plastic |
|
Product Height |
0.7 in [17 mm] |
|
Product Length |
3.3 in [85 mm] |
|
Product Weight |
2.6 oz [75 g] |
|
Product Width |
1.9 in [49 mm] |
|
Packaging Information |
|
|
Shipping (Package) Weight |
0.5 lb [0.2 kg] |
|
What's in the Box |
|
|
Included in Package |
1 - USB 3.0 to HDMI Adapter |
|
|
1 - HDMI to DVI adapter |
|
|
1 - Software CD |
|
|
1 - Manual |
| Brand | StarTech |
| Dimension |
Product Height 0.7 in [17 mm] Product Length 3.3 in [85 mm] Product Width 1.9 in [49 mm] |
| Interface | Interface |
| Ports | 1 |
- Manufacturer Warranty
- 2 Years Limited Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
